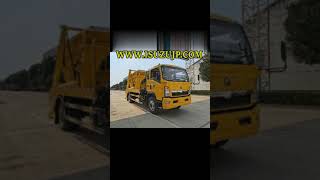

Novi 3m3 4m3 5m3 8m3 12m3 12m3 Skip loader bin truck body autopodizač kontejnera

We production 3m3 4m3 5m3 8m3 12m3 12m3 Skip loader bin truck body.

Chengli Group is the largest special-purpose vehicle manufacturer in China. We can customize ISUZU, FOTON, HOWO, SINO, JAC, SHACMAN, DONGFENG, JMC and other brand trucks according to your needs.


Product Name
Swing arm Garbage truck
Drive type
4x2;4x4;6x4;6x4;8x4 for Choice
Transmission type
manual
Emission standard
Euro 2,Euro 3,Euro 4, Euro 5
Fuel Type
Diesel
Size
5995/6370/7450/8500*2350*2800mm
Place of origin
Hub,China
Brand
CLW
Warranty
1 Year
Weight(KG)
3560/6500/12000kg
Chassis Brand
Dongfeng,Faw,Foton,Sinotruk Howo,JAC,Isuzu,IVECO,Shacman
Driving Type
4x2;4x4;6x4;6x4;8x4 for Choice
Garbage box Volume
2-45m3
Loading capacity
2-50tons
Colour
Customer Requirements
Usage
Urben garbage cleaning
Name
Skip bin
Size
Customized Size
Material
Mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade
350 (AUS), A210(USA).
Other Specifications
1. RHS are used for top rails, and top edge of plate continuous welded to RHS
2. Fully and partly welded inside and outside
3.Hook bar: Dia 50mm
4. Bottom chassis : PFC or 'I' beam, usually 200*75 PFC
5. Curved sides are available
6. Hinge and rollerswith grease points
Options
1. Two openning door
2. Up openning door
3. HDG (Hot dipped galvanizing
4. Crane eyes on top
5. Double spening door
6. Ladder in front or in the back
Painting
Customized,curved sides are available
Other
We will paint each bin you order in your company colors,enhancing your company image with great looking bins.Two times of primer+
two times of top coat
Primer : zinc-based epoxy (Grey)
Top coat : Urethane (Any color)Hinge and rollerswith grease points
