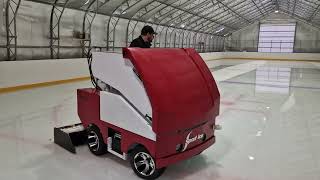

Zamboni Sport Ice Bumbleebee 160. Pro mašina za održavanje leda
Rīga7283 km to "United States/Columbus"
Ako odlučite da kupite opremu po niskoj ceni, proverite da li komunicirate sa pravim prodavcem. Saznajte više o vlasniku opreme. Jedan od načina prevare je da se predstavi kao prava kompanija. U slučaju sumnje, obavestite nas o tome radi dodatne kontrole, putem obrasca za povratne informacije.
Pre nego što odlučite da napravite kupovinu, pažljivo pregledajte nekoliko prodajnih ponuda kako biste razumeli prosečnu vrednost izabranog modela opreme. Ako je cena ponude koja vam se sviđa mnogo niža od sličnih ponuda, razmotrite je. Značajna razlika u ceni može ukazati na skrivene nedostatke ili pokušaj prodavca da izvrši prevaru.
Ne kupujte proizvode čija je cena suviše različita od prosečne cene slične opreme.
Ne dajte saglasnost na sumnjive zaloge i plaćanje robe unapred. U slučaju sumnje, ne bojte se da pojasnite detalje, tražite dodatne fotografije i dokumente za opremu, proverite autentičnost dokumenata i postavjate pitanja.
Najčešća vrsta prevare. Nepošteni prodavci mogu zatražiti određenu količinu kapare da "rezervišu" vaše pravo na kupovinu opreme. Dakle, prevaranti mogu sakupiti veliki iznos i nestanu, i više se ne pojave.
- Prenos pretplate na karticu
- Nemojte plaćati unapred bez izdavanja dokumenata koji potvrđuju postupak prenosa novca, ako je vam tokom komunikacije prodavac postao sumnjičav.
- Prenos na račun "poverenika"
- Takav zahtev treba biti alarmantan, najverovatnije komunicirate sa prevarantom.
- Prenos na račun kompanije sa sličnim nazivom
- Budite oprezni, prevaranti se mogu sakriti iza poznatih kompanija, neznatno menjajući njihov naziv. Nemojte prenositi sredstva ako vam je naziv kompanije sumnjiv.
- Zamena sopstvenih podataka u fakturi stvarne kompanije
- Pre prenosa proverite da li su navedeni podaci tačni i da se odnose na navedenu kompaniju.
+371 22 82...
Prikaži
+371 22 827 843
Poljska, Jordanow
2.146 €
25.000 NOK
≈ 251.600 RSD
Norveška, Lysaker
Poljska, Sandomierz
More info and pictures available upon request.
product data
MACHINE DIMENSIONS
Length (Overall) :2286 mm
Width (Conditioner):1620 mm
Width (Body):1118 mm
Height:1524 mm
WEIGHT
Machine Weight (Empty):1106 kg
Machine Weight (Full Water):1334 kg
SNOW TANK
0.50 Cubic Meter Capacity Steel Fabricated Tank
Manually Opened Snow Tank Lid With Lift Assist Gas Springs
Gravity Dumping Of Snow Tank
WATER TANK
228-liter Capacity
Aluminum Water Tank With Water Level Gauge
Manual Control Valve For Control Of Gravity Fed Water System Ports For Optional Cartridge Style Heating Elements
CONDITIONER
1620mm Wide, Shaving Blade 1524 Wide
Horizontal Screw Conveyor, 203mm (8")with Double Flighting In Snow Transfer Area
Water Distribution Pipe
Controlled Blade Shaving Depth Via Adjusting Hand Wheel
Plastic Wear Strips
Chain Drive Auger From Sauer Snm Motor
Aluminum Towel Bar And Spreader Cloth
DRIVE TRAIN
Wheelbase: 965 mm
Wheel Track: Front:973mm
Wheel Track: Rear:1012 mm
Ground Speed:16kph Max
Description
HYDRAULIC SYSTEM
The hydraulic flow has 28-liter hydraulic oil tank with filler/breather, suction strainer and return line filtration (10 micron). The hydraulic oil tank is built with a “passive heat exchanger” system. The oil tank encircles the vertical auger housing so that the snow passing through the vertical auger cools the hydraulic oil.
The hydraulic oil heats the auger housing and reduces icing and snow jams in the vertical auger housing 2 section manually operated control valve provides for operator control of lift bar and auger motors. An adjustable flow divider with separate relief valve for the steering circuit.
BATTERIES
48V Smart Charger
Lithium battery package 48v, 200ah lifepo4; smart charger for lithium batteries; 110 vac or 220 vac input; include battery monitoring system（bms).
MACHINE LOOMS
All machine looms use Deutsch waterproof connectors, harnesses enclosed in split loom conduit. ELECTRIC CONTROLS
Sevcon: solid state traction control on heat sink with onboard diagnostics
LIFT BAR
Custom designed and fabricated weldment, hydraulically actuated
lift bar stroke （and the resulting down pressure）is adjustable via threaded cylinder and clevis Double P.O. check valve manifold “locks” in down pressure for ice shaving performance
VERTICAL AUGER
152.4mm （6”） diameter auger enclosed in steel tube, 330 mm （13.0”）dia slinger for superior snow compaction
Auger is powered by a Sauer SNM motor via a chain drive
FINAL DRIVE
Wheels/tires: 18* 8.00-12.5 tires studded with ice screws Ground speed: 16kph （10 mph）maximum
Graziano rear axle with brakes; D&D Traction motor mounted directly to axle
STEERING SYSTEM
Danfoss OSPM hydraulic steering control powering a hydraulic steering cylinder, 356mm （14”）diameter steering wheel
OPERATOR’S STATION
Operator compartment contains:
steering wheel
manual brake pedal with parking brake
directional control switch
accelerator type foot pedal for machine ground speed
light switch
hydraulic control valve levers
water supply control rod
horn button
hydraulic pump on/off switch.
A digital display for battery discharge information, diagnostics (fault codes）and hour meter.
All weather captain' s chair（armrests).
OPTIONS INCLUDED
Pro package （board brush, high rise blade tower, extra blade）
Tire wash system
Additional shaving blades
